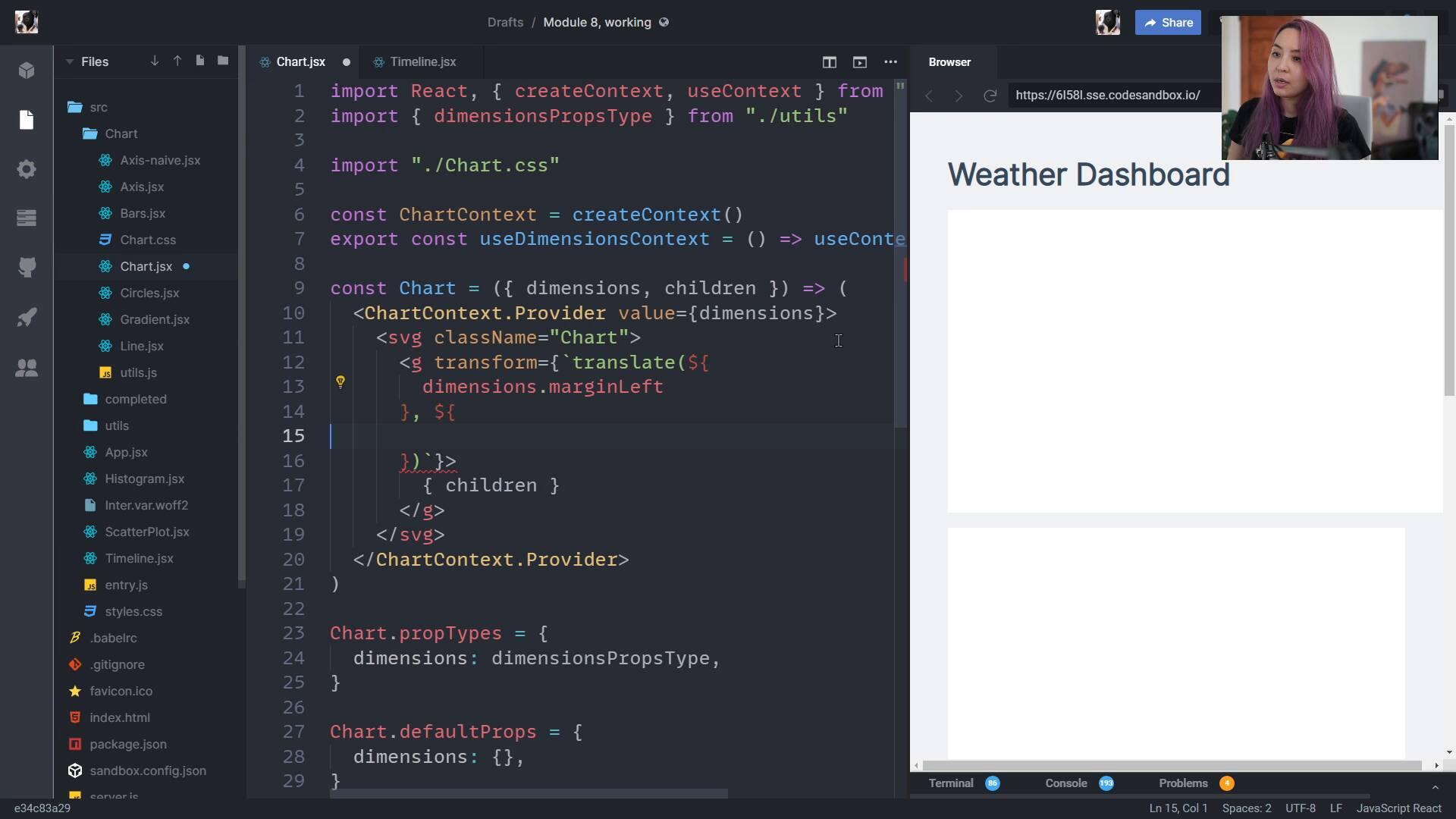

We create our wrapper and bounds within our Chart component to prevent from having to repeat ourselves for every chart we create.

Drawing our canvas in React

Next, we need to create our scales. We also create scaled accessor functions to pass to the children of our Timeline, so they don't need to know about our scales.

Creating our scales in React

Next, we fill out our Line component for a flexible way to draw our data.

Drawing our data in React

We take a naive approach to creating an Axis component

Drawing our peripherals in React

We learn an alternate, less hacky solution for creating an Axis component that lets React do all of the rendering.

Drawing our peripherals in React, take two

We wrap up by talking about how to add interactions and look at the completed code for a Timeline, Scatter plot, and Histogram.

Setting up interactions in React, and wrapping up

We take a look at how to combine d3 + Angular, with a complete codebase.

Using d3 with Angular.js

We take a look at how to combine d3 + Svelte.js, with a complete codebase.

Using d3 with Svelte.js

Coming soon! Interviews with amazing experts in the data visualization field. You'll learn about how different people get into data visualization, what most excites them, and their tips & tricks.

Interviews

Shirley and I talk about her job title, how she got into data visualization, how working in industry is different than working as a freelancer, and her new book!

Shirley Wu

Ian and I talk about his long history of building up the d3.js community, his day-to-day working at Observable, and the value of breaking projects down into small pieces.

Ian Johnson

Russell Goldenberg talks to us about what it's like working at the Pudding, his journey from Comp Sci to creative computation, and drops some great tips for working on data viz projects.

Russell Goldenberg

Will Chase talks us through how he got into data viz, the difference between work and freelance projects, and walks us through his most recent, wonderful visualization of hurricane names.

Will Chase

Charts communicate ideas with simplicity, clarity, and detail.

Once you're comfortable with D3 you can quickly:

* understand key metrics at a glance
* catch anomalies (before they turn into problems)
* give key insights to your customers
* and impress your boss and co-workers

Today, I will show you the exact methods I use to create beautiful, understandable data visualizations using D3.

The Fullstack D3 masterclass is the complete guide to D3. With dozens of code examples showing each step, you will gain new insights into your data by creating visualizations in this self-paced online course.

Fullstack D3 Masterclass

How to create any visualization you can imagine

Next up, we need to specify the size of our chart. In our dashboard, we could have Timelines of many different sizes. Each of these Timelines are also likely to change size based on the window size. To keep things flexible, we'll need to grab the dimensions of our container

We could implement this by hand by creating a React ref, querying the size of

, and instantiating a Resize Observer to update on resize. Because we'll use this same logic in multiple chart types, we created a custom React hook called

 will accept an object of dimension overrides and return an array with two values:

{
  width: 1000,
  height: 1000,
  marginTop: 100,
  marginRight: 100,
  marginBottom: 100,
  marginLeft: 100,
  boundedHeight: 800,
  boundedWidth: 800,
}

---
title: "Creating dimensions in React"
description: "Creating dimensions in React can be really easy! We use a custom hook for watching the size of our wrapper and automatically calculating the dimensions of our bounds."
useMdx: true
privateVideoUrl: https://fullstack.wistia.com/medias/xbubmyokgb
codeFolder: course/module_07/lesson_07.03/code/end
---

# Creating dimensions

<CodeSandboxEmbed
  src="//codesandbox.io/s/vbot7?fontsize=14&hidenavigation=1&theme=dark&autoresize=1&module=/src/Timeline.jsx"
  style={{width: '100%', height: '35em'}}
/>

Next up, we need to specify the size of our chart. In our dashboard, we could have Timelines of many different sizes. Each of these Timelines are also likely to change size based on the window size. To keep things flexible, we'll need to grab the dimensions of our container `<div>`.

We could implement this by hand by creating a React ref, querying the size of `ref.current`, and instantiating a Resize Observer to update on resize. Because we'll use this same logic in multiple chart types, we created a custom React hook called `useChartDimensions`.

`useChartDimension` will accept an object of dimension overrides and return an array with two values:

Amelia Wattenberger

Okay, so for our next step, we want to get the dimensions of our wrapper.

Now we might want to use this timeline component in multiple places, in which

want to hard code that within the height.

So instead, we went ahead and created this use chart dimensions React hook that

You don't necessarily need to walk through and understand exactly what it's

But a basic sense is you can pass in a dimensions object that has different

You can specify a specific height or width.

But if you don't, it'll default to these margins and it'll find the height and/

So what happens is it uses a ref that we're going to get to in a second.

And these dimensions, it's going to find these with the defaults.

And then the hook has this local state of the width and the height.

And basically, when it first loads, it'll create this resize observer.

And whenever this element changes its width or height, it'll go ahead and call

width function, which will update the local state.

So onload and whenever it updates onload, whenever height width or dimensions

or when that element is resized using this native resize observer.

And then what it does is it passes back this array with that ref and these new

So the way we can use this is we can create an array with the ref and also the

which we can use this shorthand here, DMS.

I use that sometimes just because dimensions is such a long word and it opens

And then if we want to update the margins and not use the defaults or hard code

width or height, we could set that in here.

So if we wanted a width of 100, we could specify that here.
